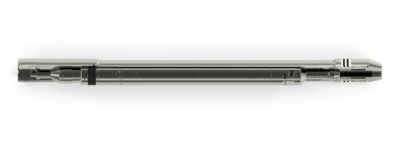

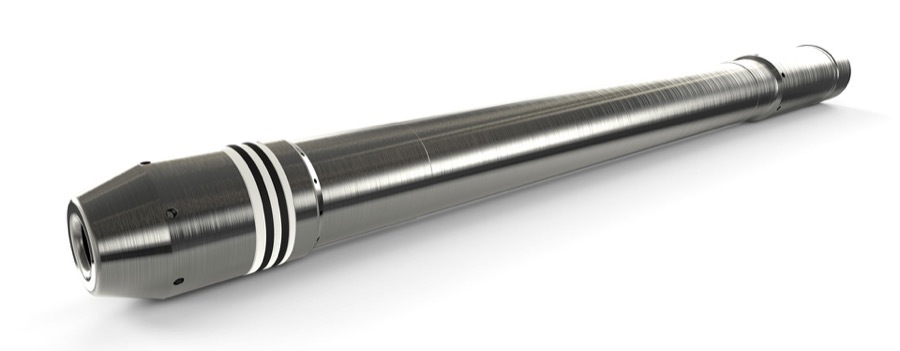

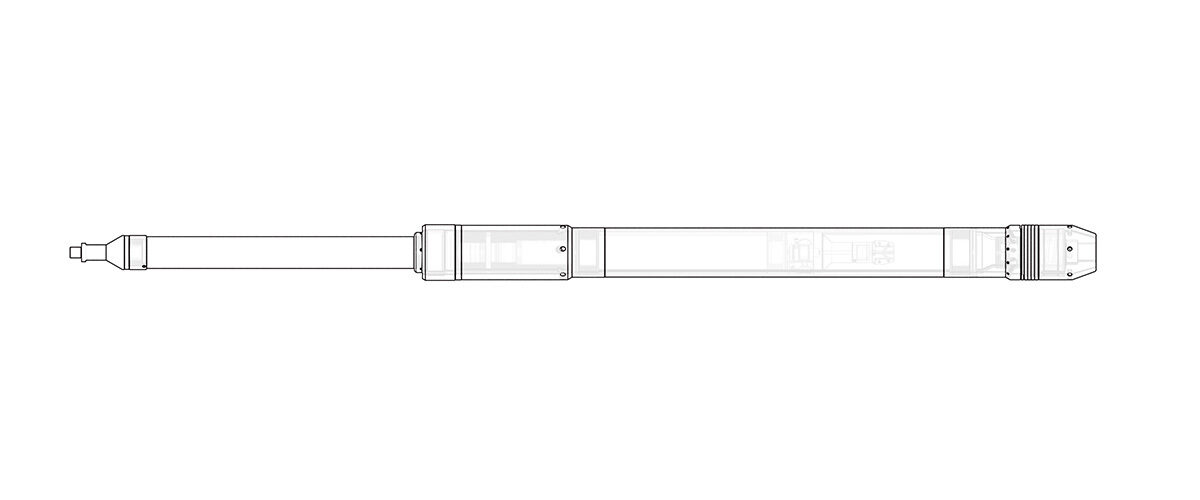

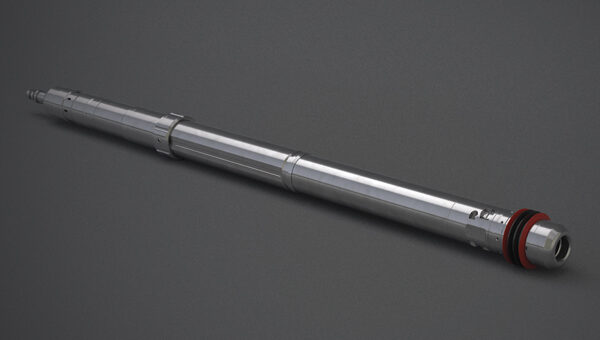

Soak Sleeve & Syringe

Download Spec Sheet

The Oilenco Soak Sleeve and Syringe is a downhole safety valve chemical treatment system.

KEY FEATURES

  • Restores functionality of the downhole safety valve
  • Significant time and cost savings
  • Deployed on slickline
  • Field re-dressable
  • Simple installation and operation

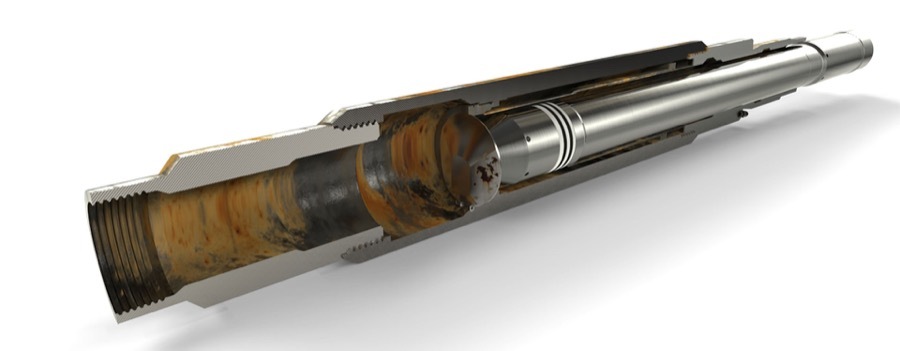

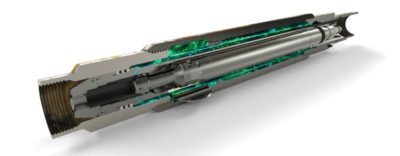

The Soak Sleeve and Syringe provides a means of precisely spotting a concentrated chemical solution across a downhole safety valve. Initially, the Soak Sleeve is deployed across the downhole safety valve, creating a sealed annulus between the sleeve and safety valve. The syringe is then filled with the relevant chemical and deployed into the soak sleeve. The chemical is then expelled into the annulus and left to soak across the affected areas of the safety valve. Leaving the sleeve in place, additional syringe runs can be completed with fresh chemicals as required.

A one-run syringe system is available for subsea operations.

Interested in this product? Contact the Oilenco team on +44 (0)1224 548700, email info@oilenco.com or click the 'Enquire Now' button to complete an enquiry form.

Related Products

Bullheading Jetting Sleeve Webpp

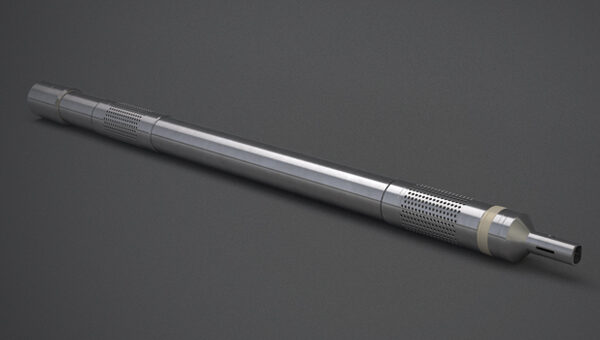

Bullheading Jetting Sleeve
